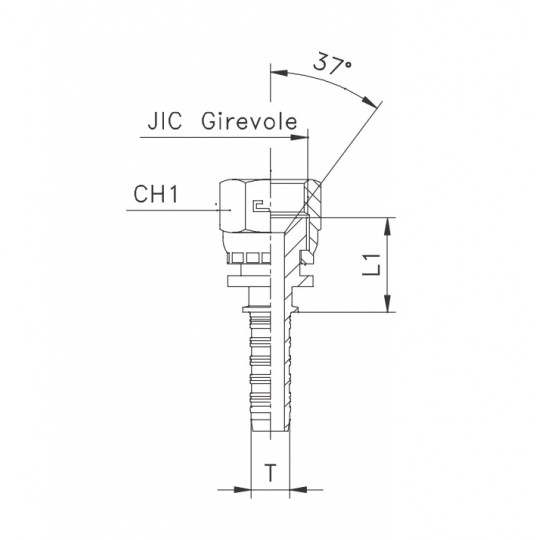

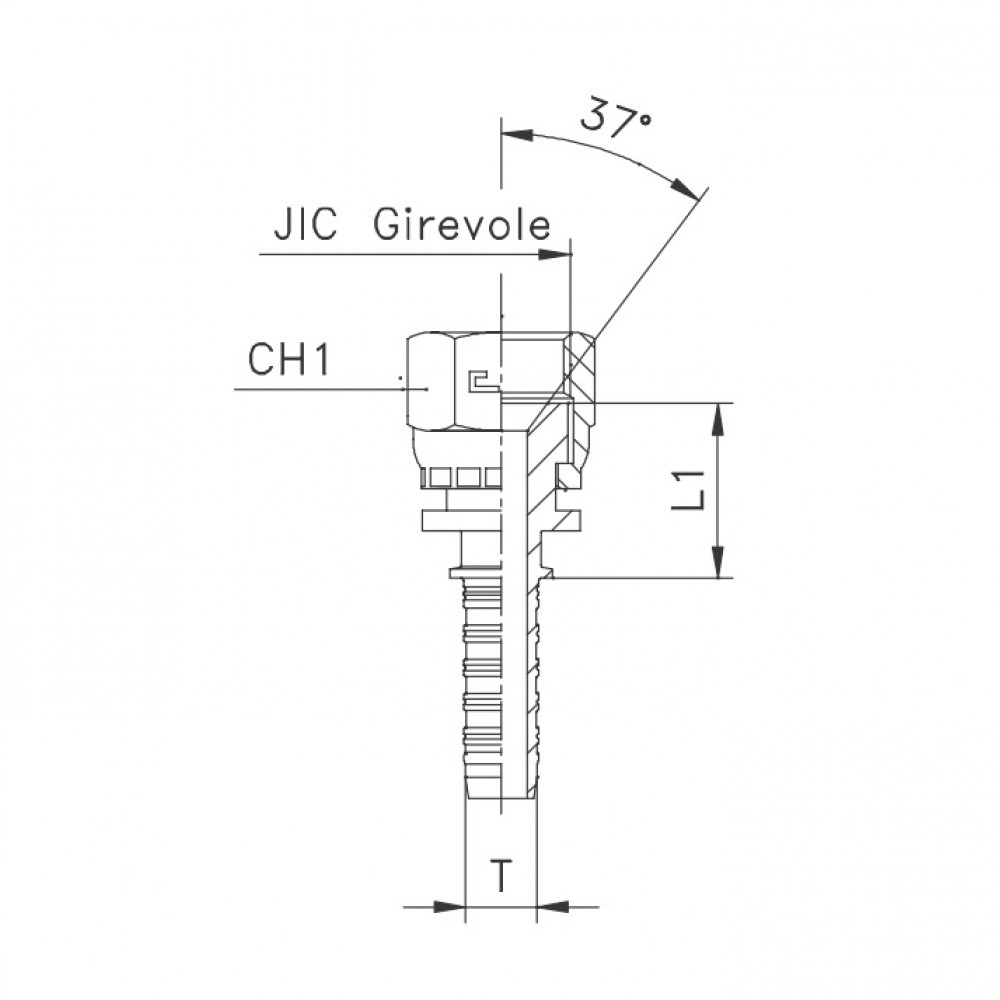

Прямой фитинг для РВД JIC, предварительно обжатая гайка - конус 74°- ISO 8434-1 (DIN 2353)
Технические характеристики
| Внутренний диаметр рукава | JIC 37° | L1 | CH1 | PN (бар) | ||
|---|---|---|---|---|---|---|
| DN | DASH | Дюйм | ||||
| 5 | -3 | 3/16 | 7/16-20 | 13,5 | 14 | 415 |
| 5 | -3 | 3/16 | 1/2-20 | 13,5 | 17 | 415 |
| 6 | -4 | 1/4 | 7/16-20 | 13,5 | 14 | 450 |
| 6 | -4 | 1/4 | 1/2-20 | 13,5 | 17 | 450 |
| 6 | -4 | 1/4 | 9/16-18 | 13,5 | 19 | 350 |
| 8 | -5 | 5/16 | 9/16-18 | 14 | 19 | 350 |
| 10 | -6 | 3/8 | 9/16-18 | 14 | 19 | 350 |
| 10 | -6 | 3/8 | 3/4-16 | 17 | 24 | 350 |
| 10 | -6 | 3/8 | 7/8-14 | 17 | 27 | 350 |
| 12 | -8 | 1/2 | 3/4-16 | 17 | 24 | 350 |
| 12 | -8 | 1/2 | 7/8-14 | 17 | 27 | 350 |
| 12 | -8 | 1/2 | 1 1/16-12 | 19,5 | 32 | 350 |
| 16 | -10 | 5/8 | 7/8-14 | 17,5 | 27 | 350 |
| 16 | -10 | 5/8 | 1 1/16-12 | 20 | 32 | 350 |
| 19 | -12 | 3/4 | 1 1/16-12 | 20,5 | 32 | 350 |
| 19 | -12 | 3/4 | 1 3/16-12 | 20,5 | 36 | 290 |
| 19 | -12 | 3/4 | 1 5/16-12 | 21,5 | 41 | 290 |
| 25 | -16 | 1 | 1 5/16-12 | 22 | 41 | 280 |
