Прямой фитинг для РВД BEL/BES - ISO 8434-1 (DIN 2353)

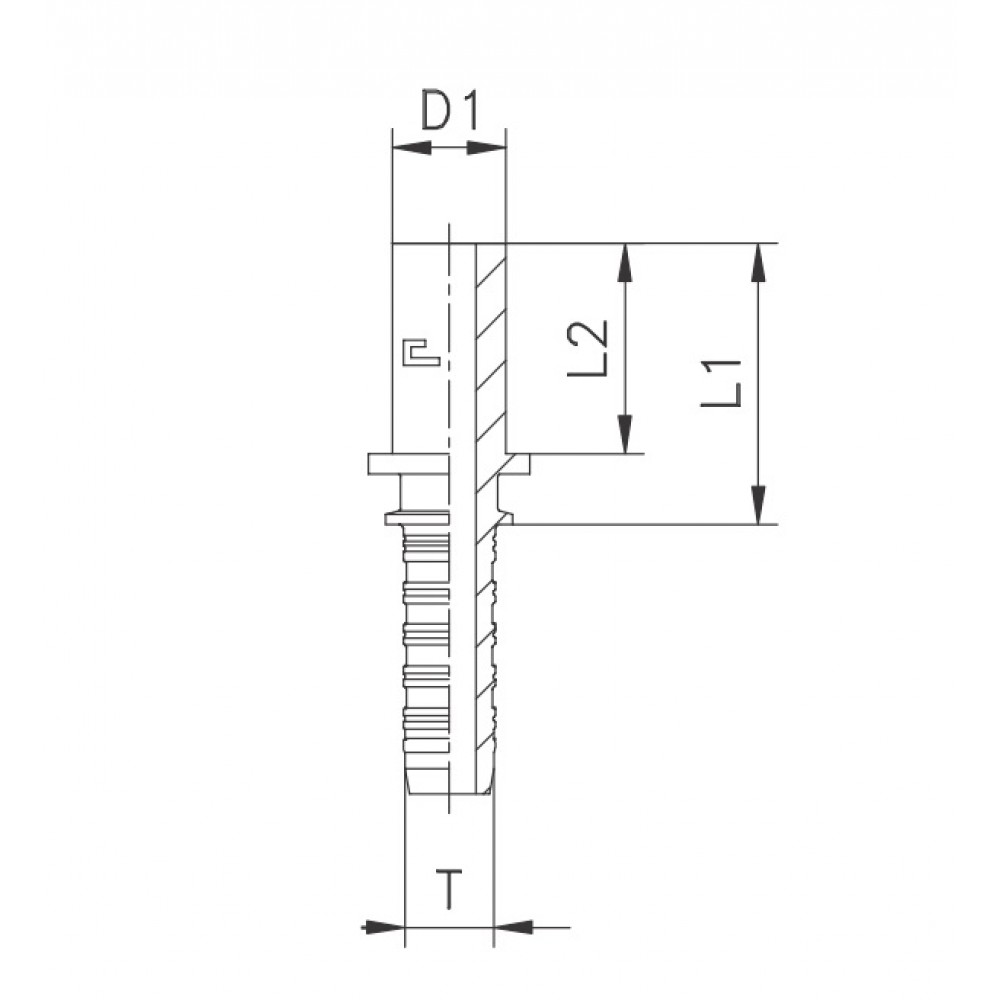

Технические характеристики
| Внутренний диаметр рукава | Конус 24°, D1 | L1 | L2 | PN (бар) | ||
|---|---|---|---|---|---|---|
| DN | DASH | Дюйм | ||||
| 5 | -3 | 3/16 | 6L/S | 24,5 | 19 | 415 |
| 5 | -3 | 3/16 | 8L/S | 28 | 22,5 | 415 |
| 6 | -4 | 1/4 | 6L/S | 24,5 | 19 | 450 |
| 6 | -4 | 1/4 | 8L/S | 28 | 22,5 | 450 |
| 6 | -4 | 1/4 | 10L/S | 27 | 21,5 | 450 |
| 6 | -4 | 1/4 | 12L/S | 31 | 25,5 | 450 |
| 8 | -5 | 5/16 | 10L/S | 27,5 | 21,5 | 350 |
| 8 | -5 | 5/16 | 12L/S | 31,5 | 25,5 | 350 |
| 10 | -6 | 3/8 | 10L/S | 27,5 | 21,5 | 445 |
| 10 | -6 | 3/8 | 12L/S | 31,5 | 25,5 | 445 |
| 10 | -6 | 3/8 | 14S | 29,5 | 23,5 | 445 |
| 10 | -6 | 3/8 | 15L | 29 | 23 | 315 |
| 12 | -8 | 1/2 | 14S | 29,5 | 23,5 | 415 |
| 12 | -8 | 1/2 | 15L | 29 | 23 | 315 |
| 12 | -8 | 1/2 | 16S | 30 | 24 | 400 |
| 12 | -8 | 1/2 | 18L | 27,5 | 21,5 | 315 |
| 16 | -10 | 5/8 | 18L | 28 | 21,5 | 315 |
| 16 | -10 | 5/8 | 20S | 34,5 | 28 | 350 |
| 19 | -12 | 3/4 | 20S | 35 | 28 | 350 |
| 19 | -12 | 3/4 | 22L | 29,5 | 22,5 | 160 |
| 19 | -12 | 3/4 | 25S | 38 | 31 | 350 |
| 25 | -16 | 1 | 25S | 39 | 31 | 280 |
| 25 | -16 | 1 | 28L | 32 | 24 | 160 |
| 25 | -16 | 1 | 30S | 42 | 34 | 280 |
| 31 | -20 | 1 1/4 | 35L | 39,5 | 30,5 | 160 |
| 31 | -20 | 1 1/4 | 38S | 49 | 40 | 210 |
| 38 | -24 | 1 1/2 | 38S | 52 | 40 | 185 |
| 38 | -24 | 1 1/2 | 42L | 42,5 | 32,5 | 160 |
